Technical specifications
| Display | Wide graphic OLED display with adjustable brightness |
| Dimensions (h x w x d) | 59 x 35 x 16 mm (2.35" x 1.37" x 0.62") |
| Weight (w/o battery) | approx. 45g (1.58 oz) |
| Mechanical construction | CNC milled, anodized aluminium alloy |
| Powering | 1x AA battery (alkaline or lithium) / 1x accu (NiMH, NiCd) |
| Current consumption | 50 - 100 mA * |
| Battery life | Up to 50 hours ** |
| SMPTE TC formats | 23,976 fps - 30 fps including DF and NDF (also 0.5 and 2 multiples: 11.98 fps - 60 fps supported) |
| Output TC amplitude | Adjustable from -30dBu to +6dBu |
| Input TC sensitivity | 0.2 - 10 V (p-p) |
| TCXO crystal | Calibrated temperature compensated oscillator (+/- 0.1 ppm) |
| Accuracy error | Less than 0.3 frames / 24 hours |
| Accuracy error with RF transmission | 0 frames / 24 hours |
| Frequency range | 902 - 928 MHz (USA/Canada) |
| 863 - 870 MHz (Europe) | |
| 920.6 - 923.4 MHz (Japan) | |
| Number of channels | 5 |
| RF output power | 10mW (10dBm) |
| Operating range | up to 500m *** |
* depends on the operating mode
** with the lowest display brightness, RF off, alkaline battery (Lithium cell)
*** within the line of sight

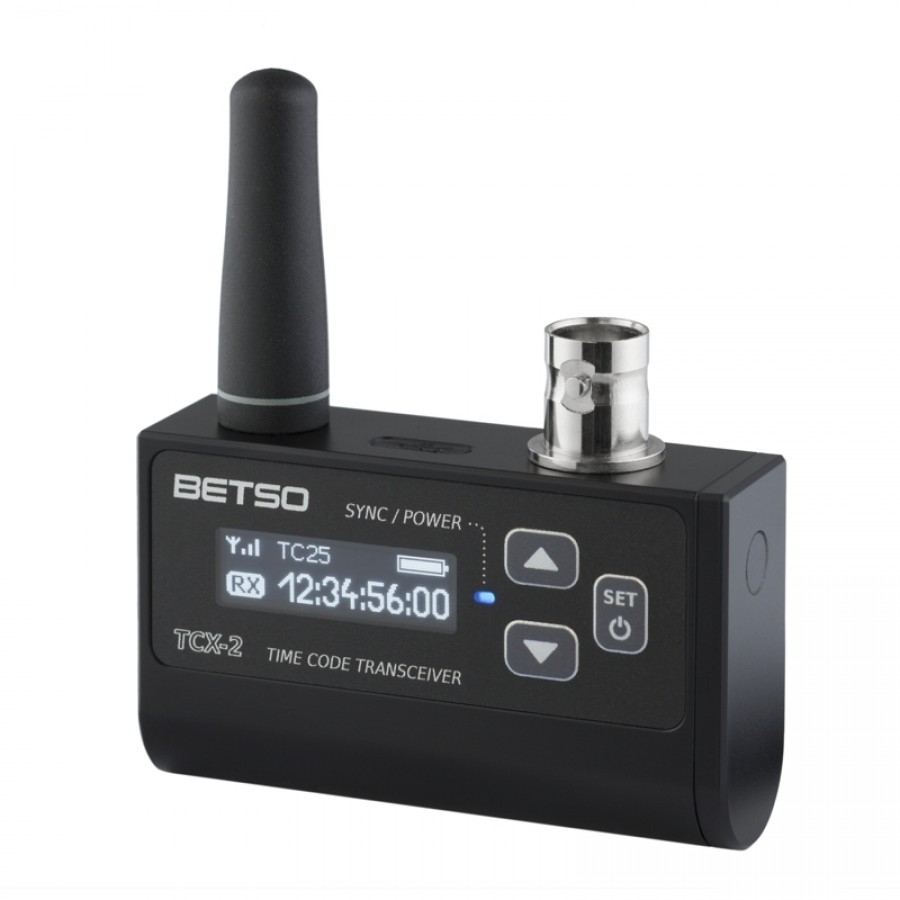

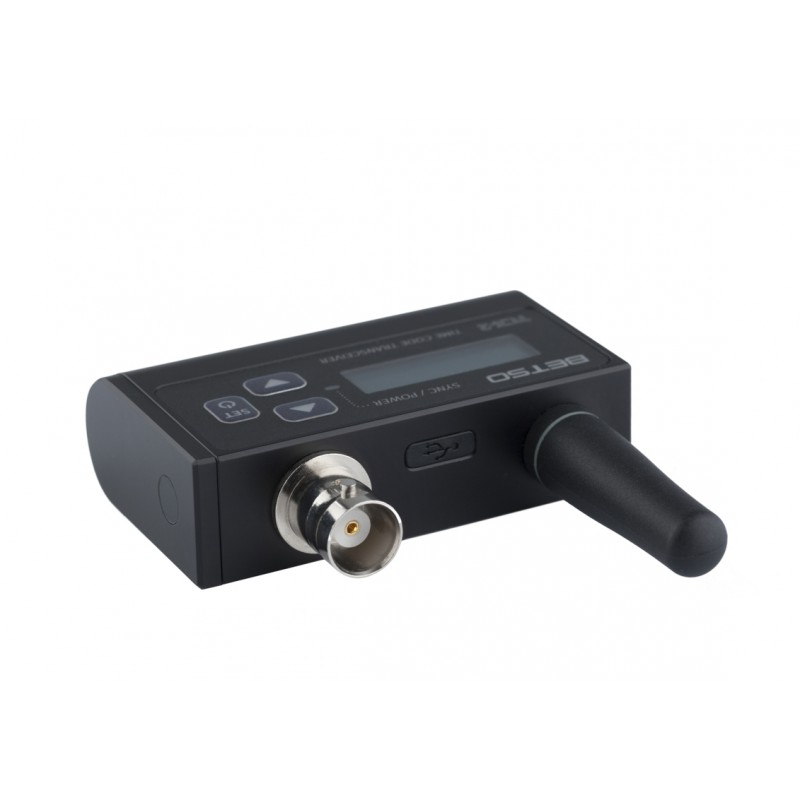

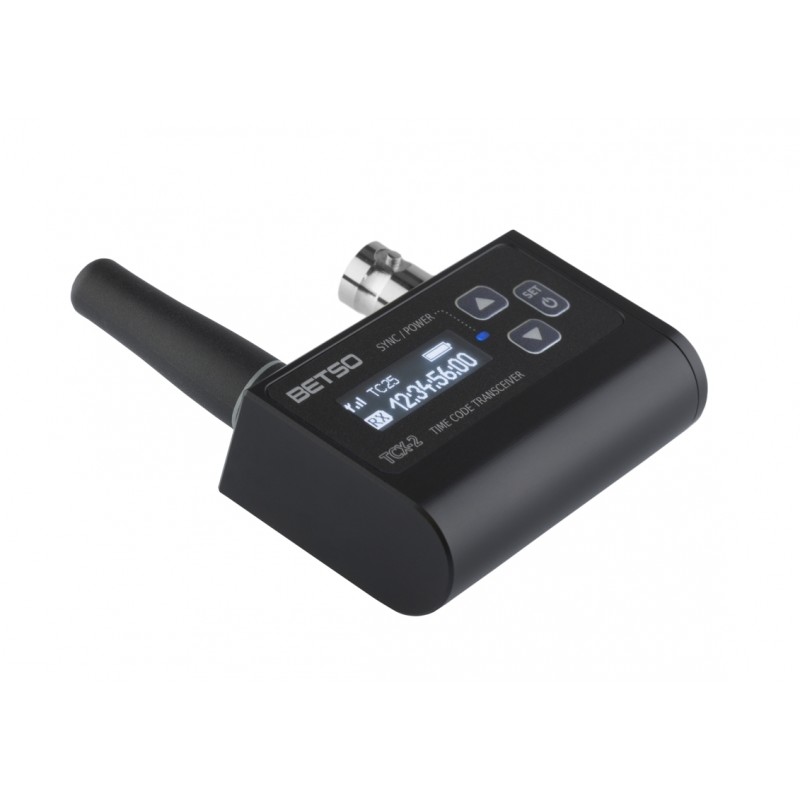

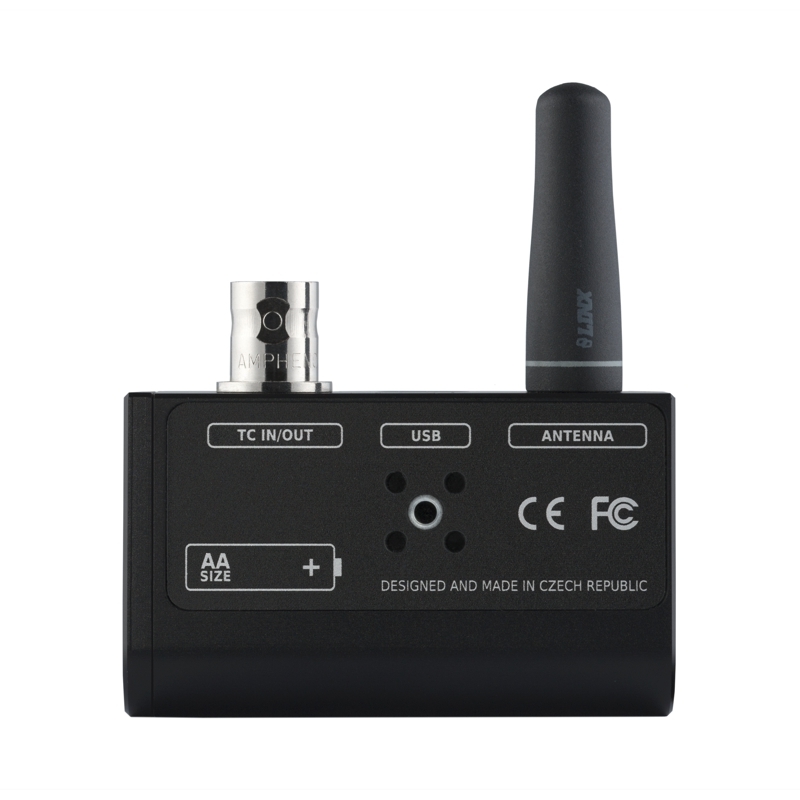

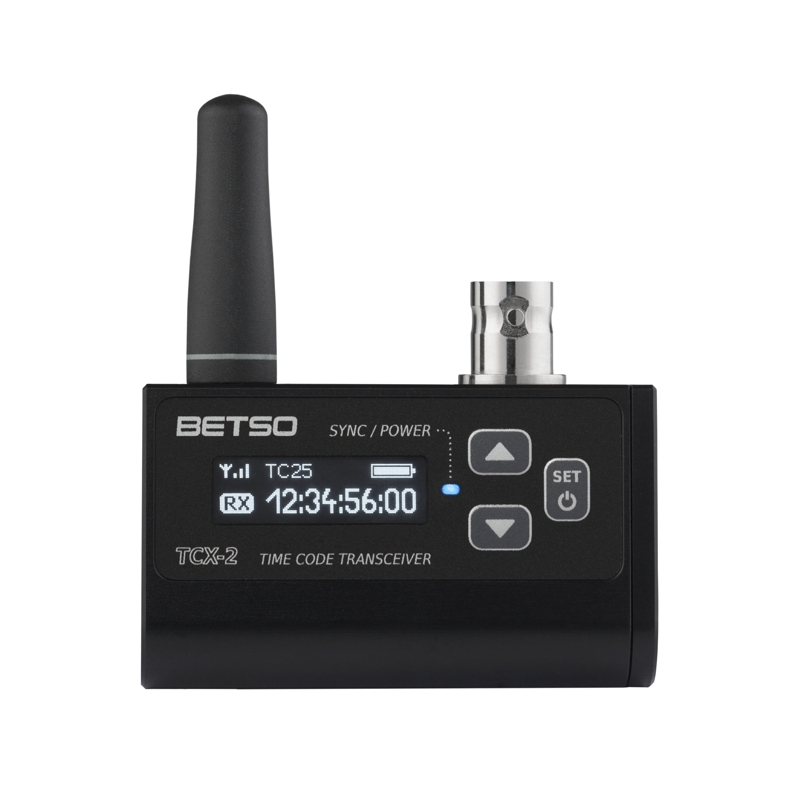

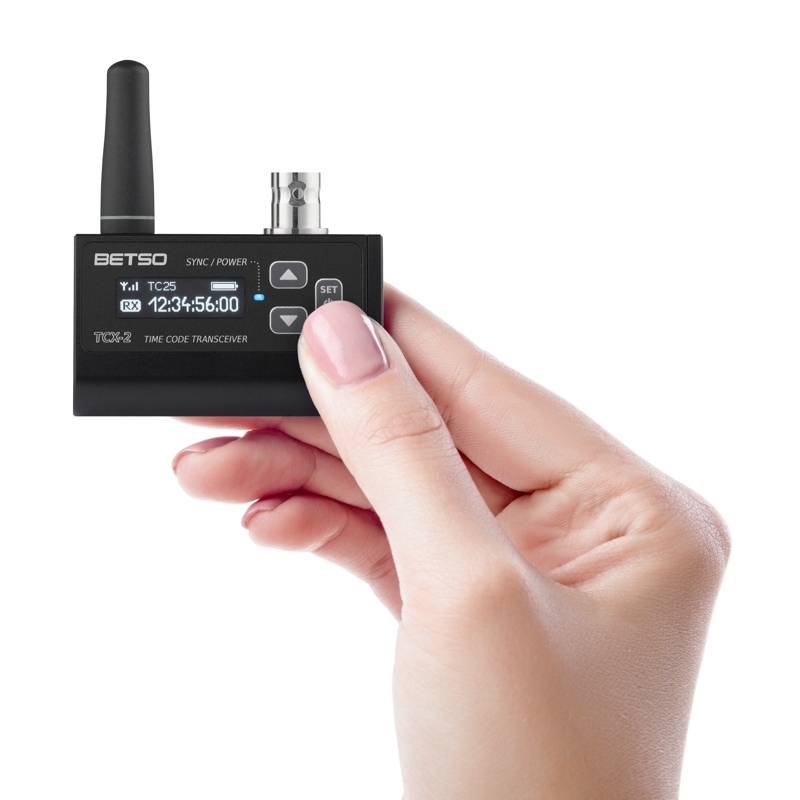

Betso TCX-2
- Views: 14648
-
- Product Code: Betso TCX-2
- Availability: 7-10 Days
- 329.00€
