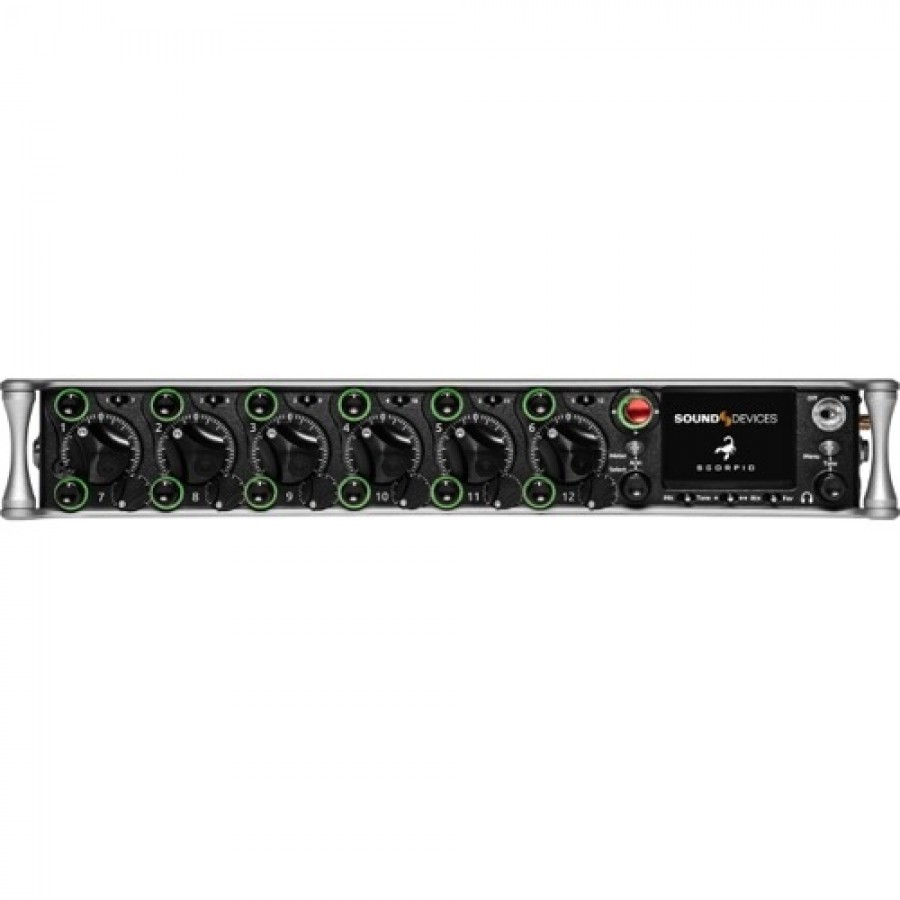

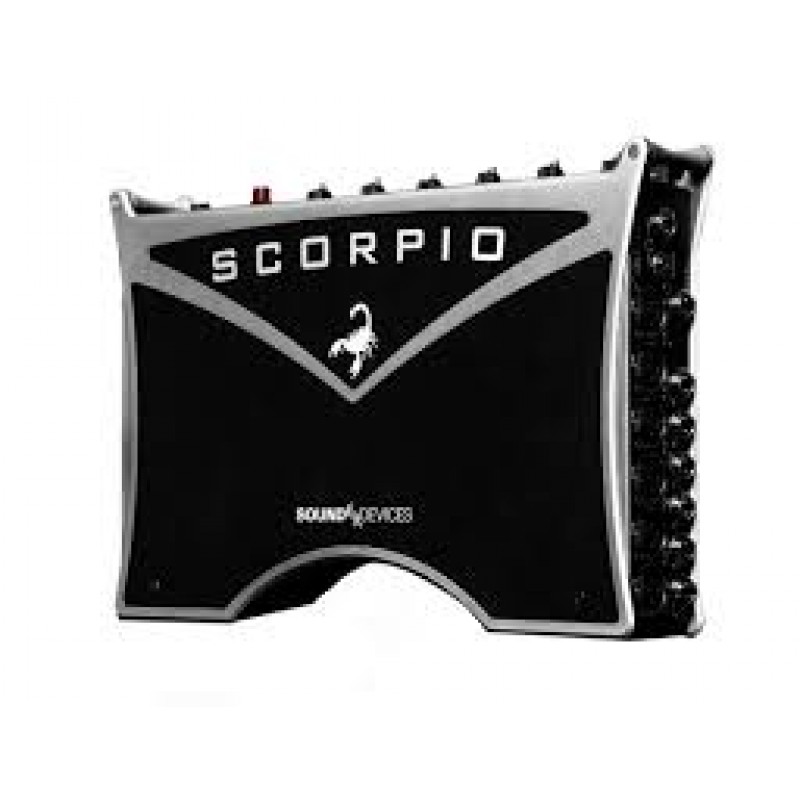

SD Scorpio

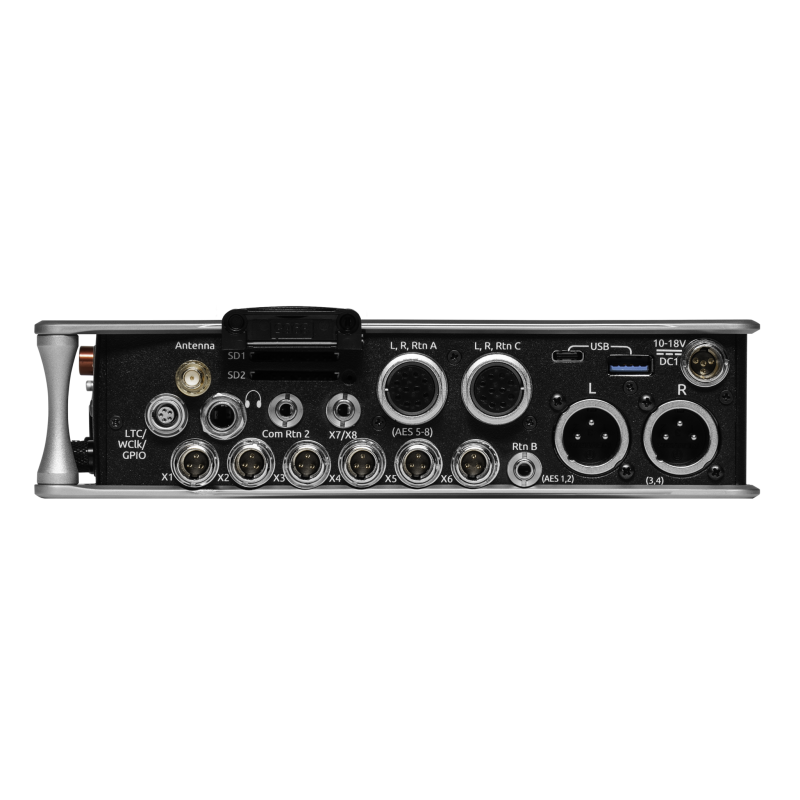

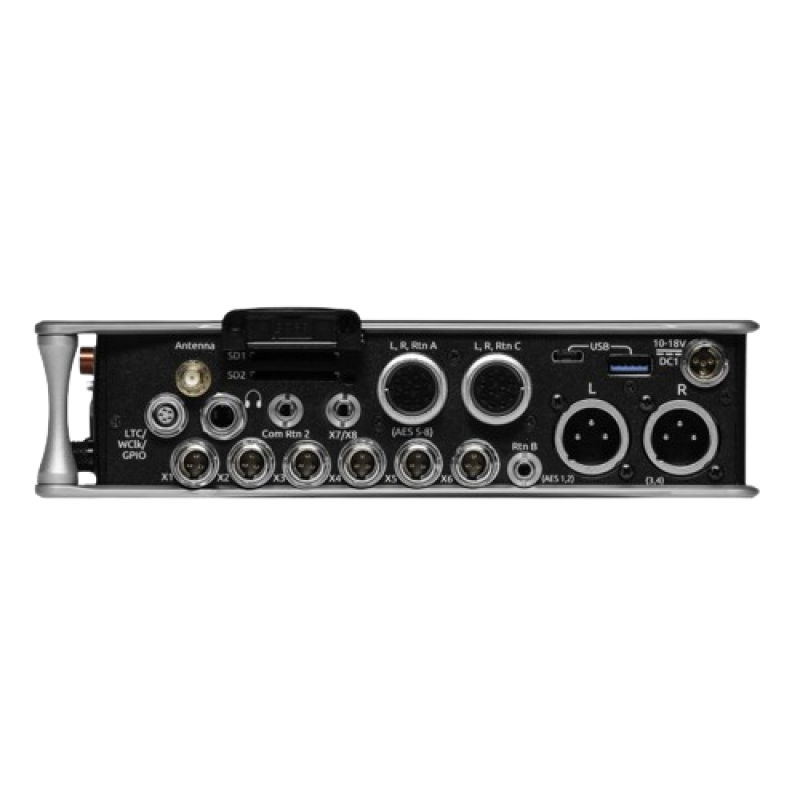

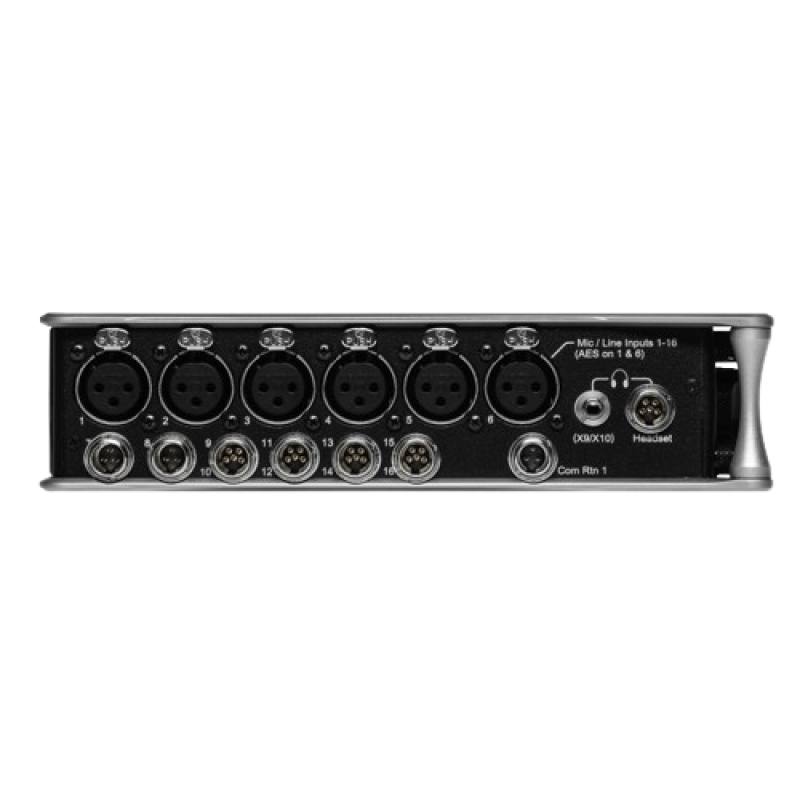

Scorpio is a 32 channel, 36 track mixer-recorder and the most powerful product ever designed by Sound Devices. With 16 mic/line preamplifiers, 32 channels of Dante in and out, AES in and out, 12 analog outputs and multiple headphone outputs, Scorpio is well-suited for any production scenario. A fully-customizable routing matrix enables sound professionals to send any input to any channel, bus, or output. Up to 12 buses may be individually mixed. Due to its compact form factor, the Scorpio is equally at home over-the-shoulder or in a mobile rig.

Since its release in April 2019, Scorpio has received the PSNEurope Best of Show Award at IBC2019, Editor’s Choice 2019 Award from Professional Audio, and Resolution Magazine Award for Best Recorder, 2019.

Scorpio incorporates Sound Devices’ most cutting-edge technology. An ultra-powerful engine comprised of three FPGA circuits and six ARM processors deliver the horsepower needed for the most complex tasks. FPGA-based audio processing with 64-bit data paths ensures the highest sound quality and reliability. The Scorpio also features Sound Devices’ latest and best in analog microphone preamplifier design. These preamps have the smoothest sound and lowest noise of any preamp in the company’s 20-year history and include built-in analog limiters, high pass filters, delay, 3-band EQ and phantom power.

The Scorpio has an internal 256GB SSD and can simultaneously record to two SD cards for redundancy. For additional flexibility, sound professionals can send different files to their choice of media.

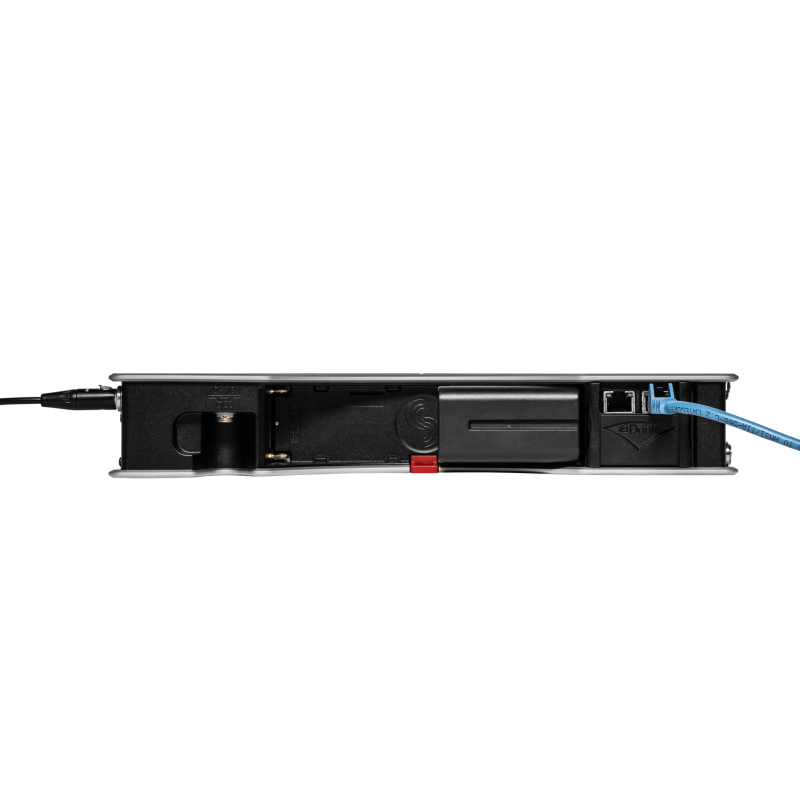

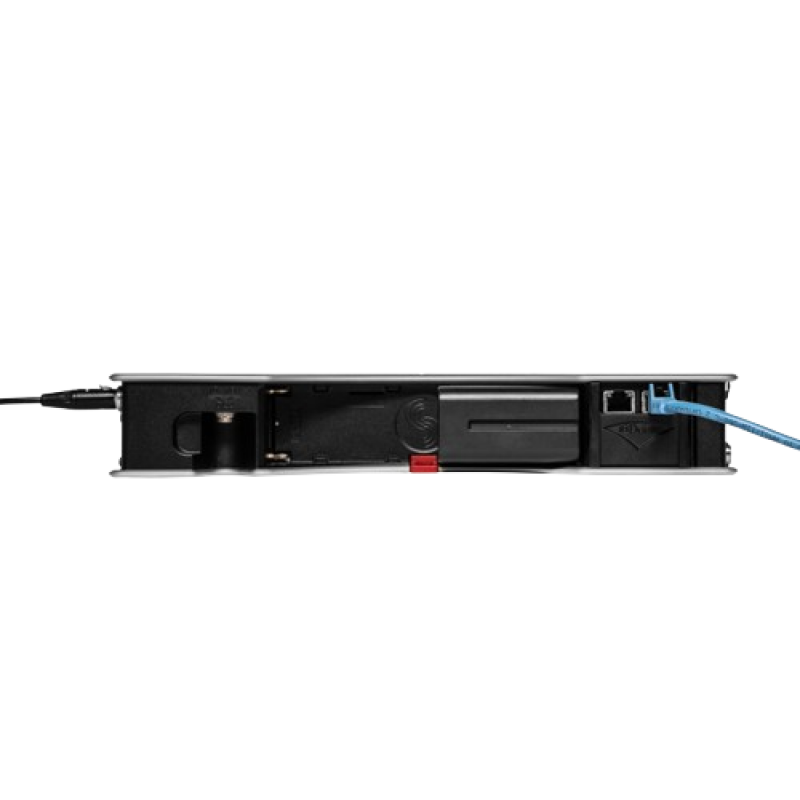

Great attention to detail has been paid to every aspect of the Scorpio’s design. Most common menus are accessible with only one or two button presses, and many menu shortcuts can be achieved with only one hand. Scorpio features a built-in dual L-Mount battery charger and may be powered with L-Mount batteries or via the TA4 DC inputs using smart batteries, NP-1 batteries, or in-line power supplies. The ultra-accurate, fully-featured timecode generator contains its own battery to hold timecode for up to four hours after power off.

Enable Dugan Automixing or MixAssist to automatically attenuate unused microphones in multi-microphone applications. Up to 16 channels can be automixed at a time, and two separate groups can be mixed simultaneously. Scorpio’s intuitive LED metering and sunlight-readable screen display accurate Dugan channel attenuation and gain distribution across all channels.

Get the perfect fit on your cart with the Sound Devices CL-12 or one of several supported USB control surfaces for remote fader and transport control. Download the companion Android app, SD-Remote, to access to transport controls, metering, and sound reports on a large touch screen.

Overview

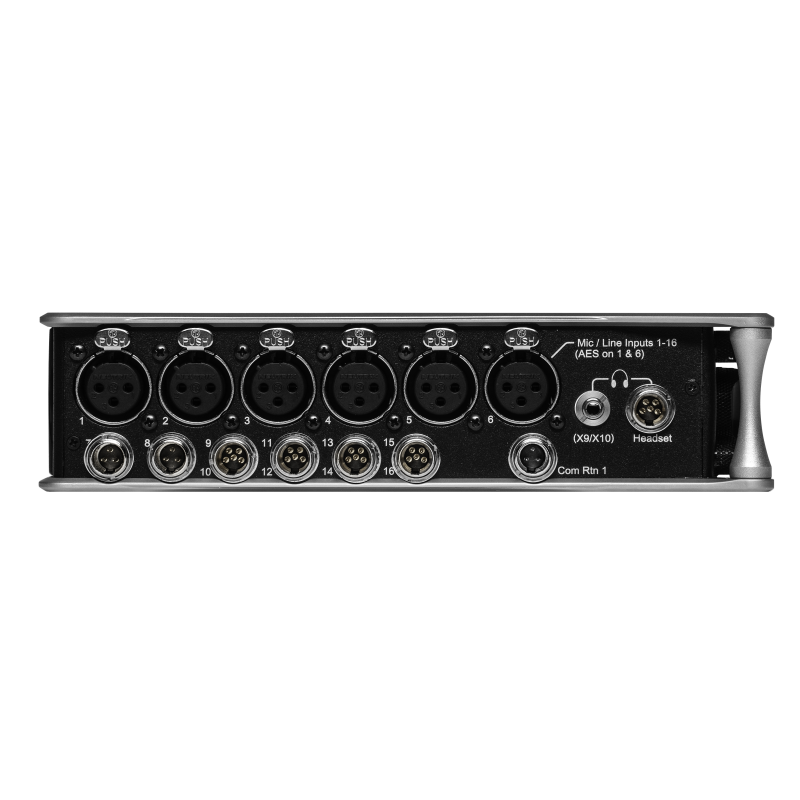

• 16 ultra low-noise, 8-Series microphone preamplifiers
• 32 channels, 12 buses, 36 tracks
• 32 channels of Dante I/O
• 256 GB internal SSD, 2 SD card slots
• USB-A and C ports for SD-Remote app, linear fader control via MCU, keyboard, and file transfer
• Dugan Automixing/MixAssist for up to 16 channels
