- AGILE: working bandwidth of 470-870 MHz
- EASY & QUICK TO USE: LED display & function buttons
- RUGGEDIZED: sturdy metal body construction and epoxy protection on cable joints
- HIGH-PERFORMANCES: optimized 6dB gain with a typical beam-width of 90 degrees
- INTEGRATED BOOSTER: very high linear booster (OIP3 40 dBm) with 15 dB gain settable in one step dB step
- Frequency ranges: 470 ÷ 870 MHz (420 ÷ 1300 MHz bypassed)
- SWR: < 1:1.5; typ. = 1:1.4
- Polarization: Vertical
- Radiation: Directional
- Connector: N type (BNC adapter available)
- Impedance: 50 Ω
- Booster Gain: 0 ÷ 15 dB (typical), selectable in step of 1 dB (+/- button)
- Booster Gain: flatness ± 1 dB, in the whole working window
- OIP3: +43 dBm (Output 3° order Intercept Point) typical
- Power: supply +12 V, 100mA
- Material: epoxy fiberglass (copper – clad)
- Finishing: black matte
- Mounting: 5/8” with worth or 3/8” with adapter
- Dimensions: 276 x 336 x 61 mm (HxWxD)
- Weight: 535 g (LBNA2), 585 g (LNNA2)

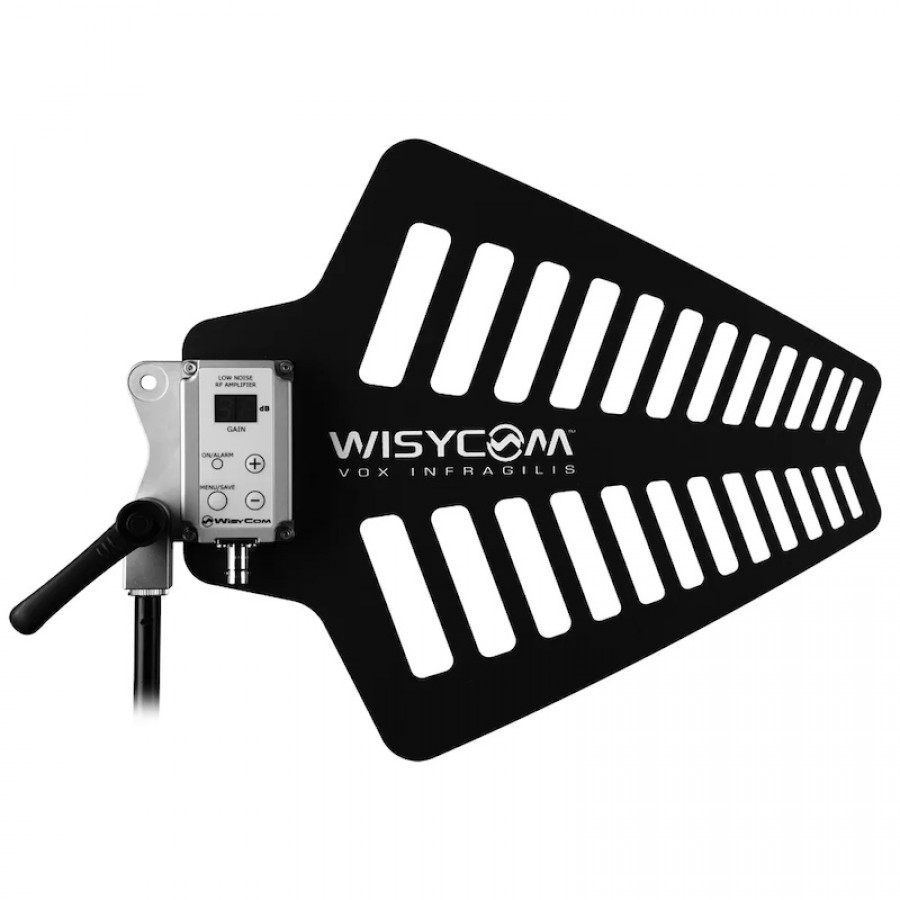

WISYCOM ACTIVE ANTENNA LBNA2-LNNA2
- Views: 504
-
- Product Code: WISYCOM ACTIVE ANTENNA LBNA2-LNNA2
- Availability: 7-10 Days
- 540.00€
