SWIT Dual Charger Battery Pack

Includes:

- 1x SWIT S-3602F - 2-ch Simultaneous Charger

- 2x SWIT S-8972 Sony L Series Batteries

SWIT S-3602F - 2-ch Simultaneous Charger

Features

• Charger for SWIT S-8975/8972/8970/8770 battery - for use with the SWIT CM-S75C -7" 1920 x 1200 monitor.
• 2-ch simultaneous charging
• Compatible with SONY L series DV batteries
• 2 DC adapting output sockets
• 4-level LED charging indicators

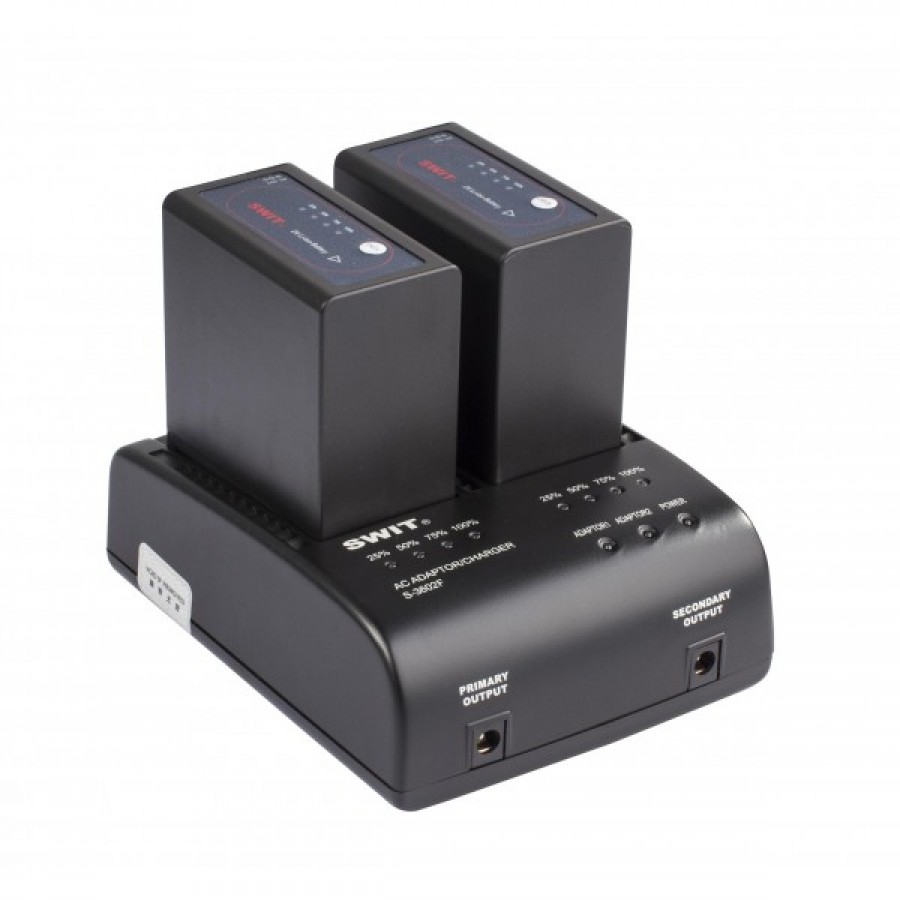

The S-3602F is a dual channel charger for SWIT S-8972, S-8970 and S-8770, and is also compatible with SONY L series NP-F970/770 DV batteries.

The S-3602F has 2 charging channels, with DC 8.4V, 2A charging output for each channel, and can charge 2 batteries simultaneously. The 4-level LED charging indicators are provided for each channel, which indicate the real time capacity by percentage when charging.

S-3602F has 2x 5.5mm/2.1mm pole sockets for DC adapting output. The DC outputs work simultaneously and provides DC 8.4V, 3.5A in total.

COMPATIBLE with Dummy SONY L series Battery Adaptor (S-7500F)

SONY L SERIES DV CAMCORDER BATTERY

› Li-ion battery pack of 7.2V nominal voltage

› Comparable to SONY L series DV batteries

› Display remaining power info on camera viewfinder

› 47Wh / 6.6Ah capacity

› 4-level LED power indicator

› 7.2V Pole-tap DC output

› Multiple circuit protections

SONY L series battery

Display remaining power info

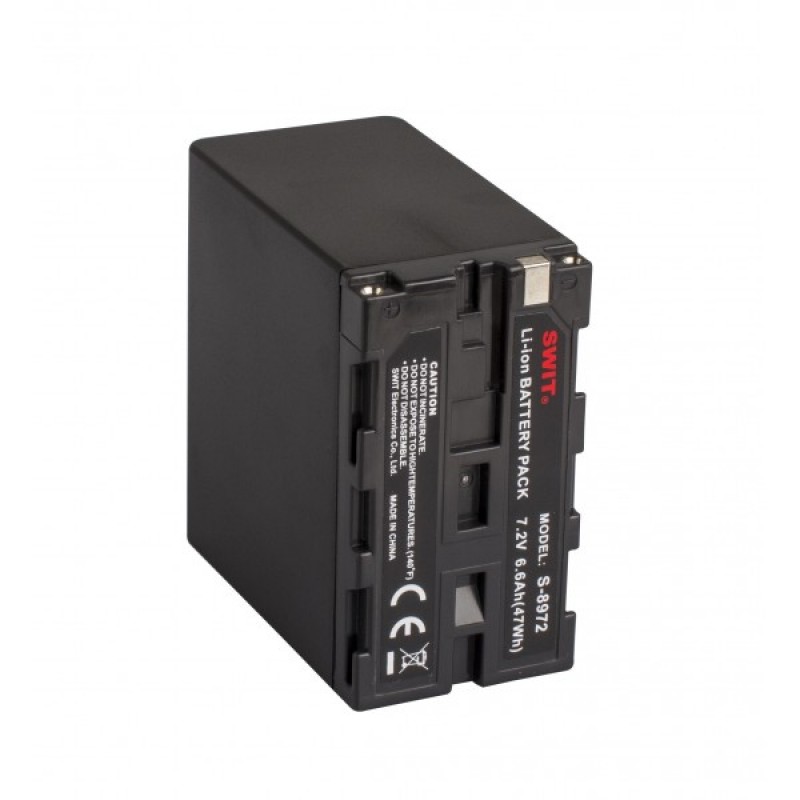

S-8972 is the replacement battery for SONY NP-F970, compatible with SONY HVR-V1/Z1/Z7, DSR-PD190, HD1000E, etc. S-8972 can exchange digital info with the cameras, and display remaining power info on the camera viewfinder.

47Wh / 6.6Ah High Capacity

With 7.2V nominal voltage, the S-8972 has 47Wh / 6.6Ah capacity, and can run approx 5.5 hours on SONY HVR-Z1 camcorder when LCD monitor is on.

Build-in Pole-tap DC Output Socket

A 5.5/2.1mm pole-tap DC output socket is equipped on the side of S-8972 battery, for DC 7.2V (Nominate) connection. You can connect on-camera LED light, monitor or wireless transmitter on the pole-tap socket, and get power simultaneously with camera.
The Max power from the pole-tap is 30W, 4A.

4-level LED Power Indicator

The S-8972 battery has the 4-level LED power indicators to check the battery remaining capacity. You can get a quick view of capacity before using.
