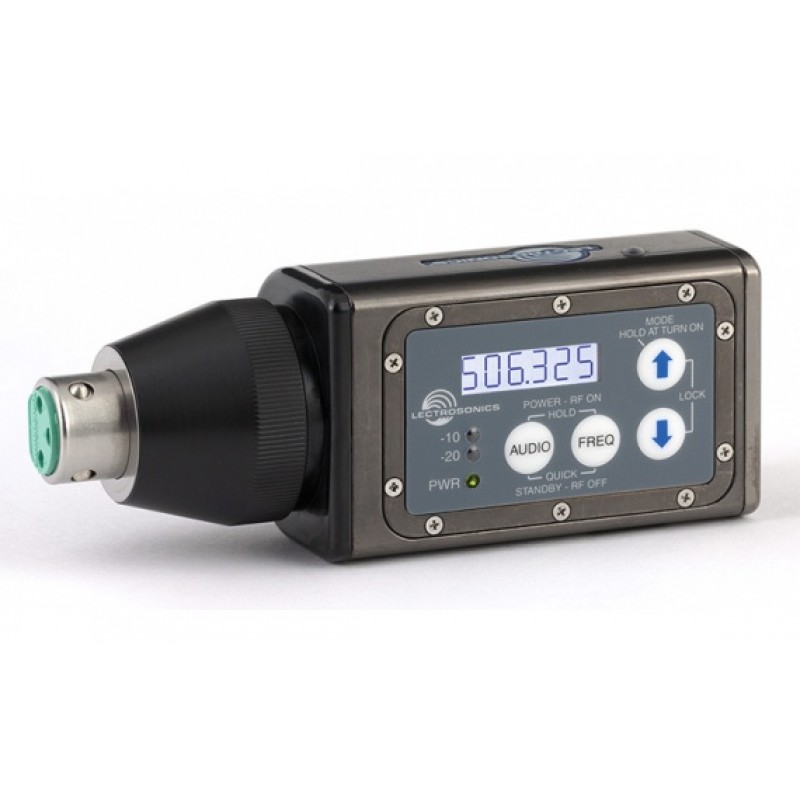

The HMa from Lectrosonics is a UHF plug-on transmitter that accepts mic or line-level signals via a standard XLR connector. It has selectable 5, 15, & 48V phantom power and can be used when paired with a Lectrosonics receiver and handheld microphone - sold separately - in applications for ENG (Electronic News Gathering), EFP (Electronic Field Productions), interviews for broadcast TV, and more.
The input amplifier of the HMa transmitter uses an ultra-low noise op-amp for quiet operation and is gain controlled with a wide range dual envelope limiter. A 24-bit A to D converter digitizes the audio, and filters the supersonic noise above 21 kHz. The resulting signal is encoded with a proprietary algorithm to produce an analog data signal for RF transmission.
Featuring a wide tuning range of 76 MHz, with tuning steps in increments of 100 kHz or 25 kHz for up to 3072 frequencies, the HMa transmitter also covers three standard 25.6 MHz Lectrosonics frequency blocks. Each block provides 256 different pilot tone frequencies. Legacy analog wireless microphone and IFB receivers are designed to work in DSP compatibility mode, as well as some receivers from other manufacturers.
Finally, the transmitter is powered by two AA batteries, with status indicated by a multi-color LED. A USB port is also provided for firmware updates, and an IR (infrared) port is included to simplify setup with IR enabled receivers.
- Digital Hybrid Wireless is a revolutionary design that combines digital audio with an analog FM radio link to provide outstanding audio quality and the exemplary RF performance of the finest analog wireless systems
- Multi-color LED status indicator
- Selectable 50/100 mW output power
- 76 MHz tuning range in 100 kHz or 25 kHz steps for up to 3072 frequencies
- The antenna is formed between the machined aluminum housing of the transmitter and the attached microphone or cable. It functions as a dipole radiator when attached to a hand-held microphone and somewhat like a ground plane antenna when connected with a cable or plugged directly into a mixer
