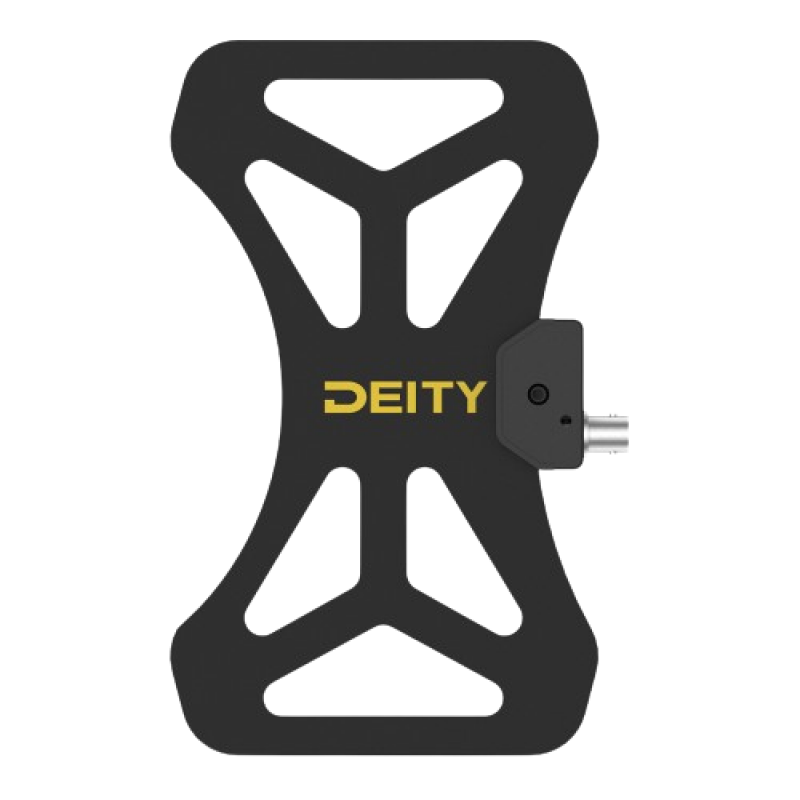

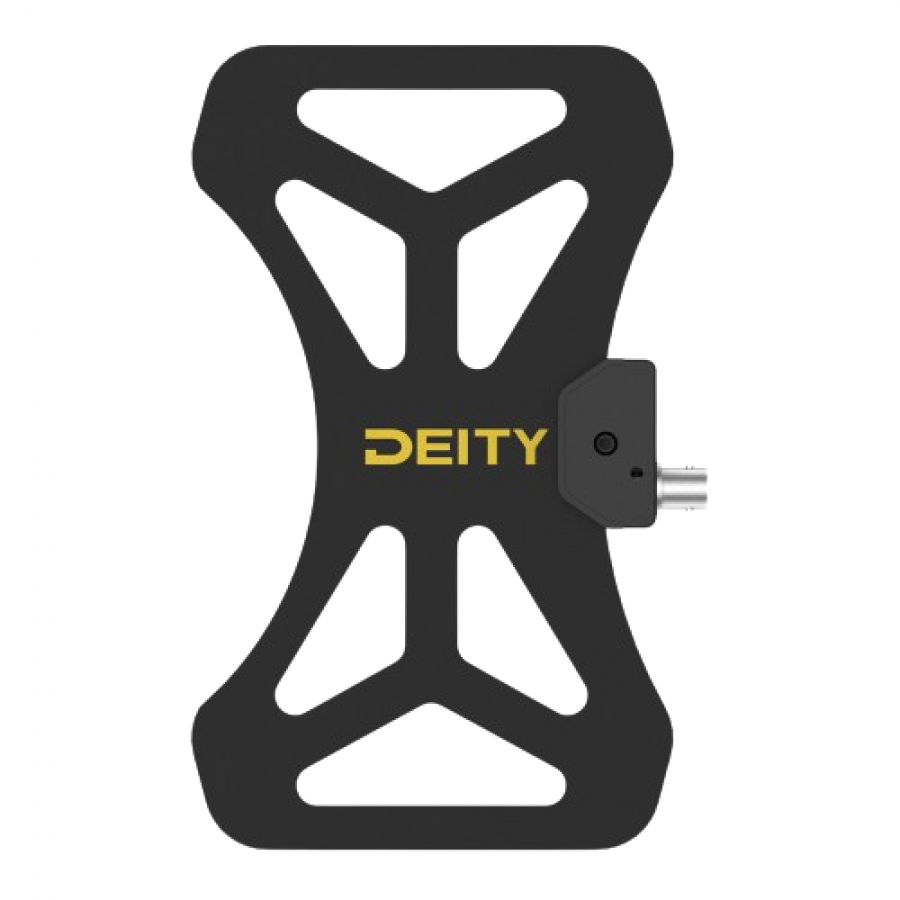

Deity BF1 butterfly antenna

BF1 – BUTTERFLY ANTENNA - WIDEBAND ANTENNA


A butterfly antenna is a type of antenna that is used in wireless microphone systems on film sets and stage applications. It has some unique characteristics that make it well-suited for certain purposes in these contexts;


  • Ultra Wideband Design

  • 470MHz-1GHz

  • Rugged Build Quality

  • CNC Metal Mount

  • 50 Ohm BNC Connector

  • Omnidirectional pickup pattern

  • Compact Design


The Deity Butterfly bow-tie antenna is designed to have a relatively wide bandwidth. This means it can operate effectively over a range of frequencies, which can be advantageous in wireless microphone systems. Film sets often use different frequency bands for wireless microphones to avoid interference, and a broadband antenna like ours that can cover all these bands without needing frequent adjustments.


SUPPORTS GLOBAL ONEBAND™ FREQUENCIES


The Deity Butterfly supports a ultra wideband of frequencies; 470MHz-1,000GHz. This means you have plenty of support for the Global OneBand within the THEOS ecosystem but also plenty of extra frequency bandwidth to support other brands wireless as well.


Now when you go into an antenna splitter, you can mix-n-match different blocks/bands.

WEATHER SEALED HOUSING

Our BNC mount is IP65 weather sealed for situations where the butterfly antenna is being used for a permanent outdoor install.

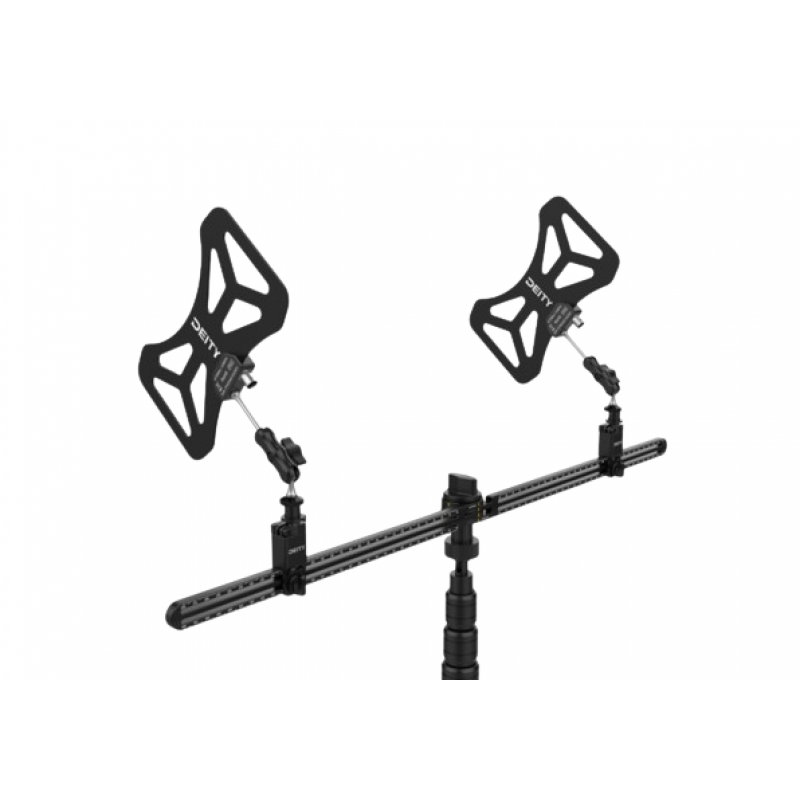

METAL MOUNT BRACKETS

Our mounting bracket is made out of CNC'd Aluminum which provides a rugged and secure block for a 1/4" 20 threaded mounting hole.


The ball head pivot arms are also made out of 100% metal, making for a durable accessory.


*The Deity Stereo Antenna Bar not included

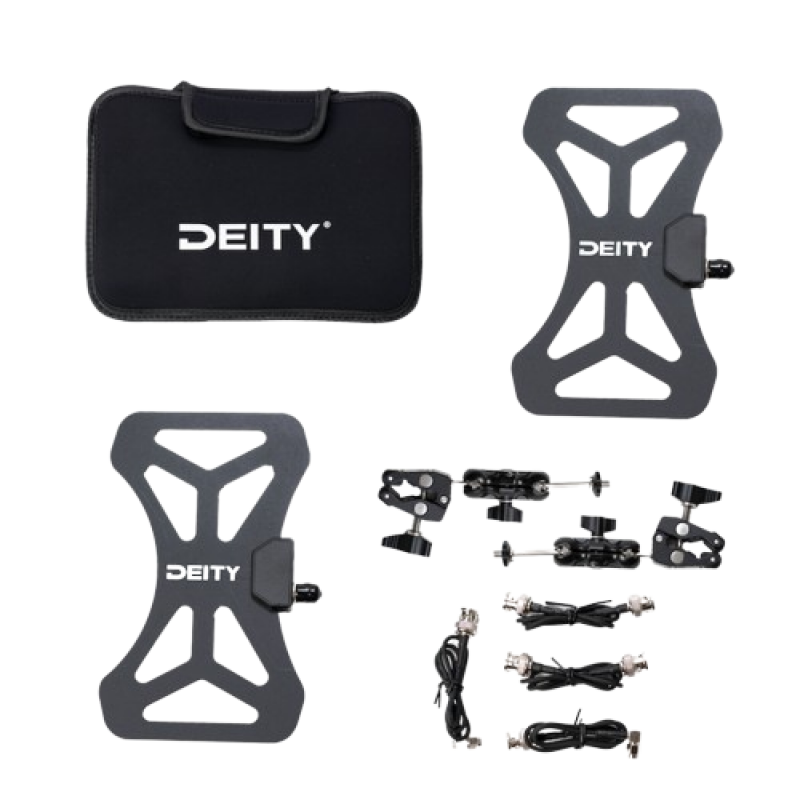

WHAT’S IN THE BOX


  • BF1 Antenna 2x

  • Antenna Pouch 1x

  • Antenna Clamp Mount 2x

  • BNC - BNC Cable 2x

  • BNC - SMA-M Cable 2x


TECHNICAL SPECIFICATIONS:




Antenna type

Passive antenna

Frequency Range

470 MHz — 1GHz

Input impedance(2)

50

Standing wave ratio

<1.5 (550MHz~750MHz)

Gain(dBi)

2.2dBi (Average)

Antenna polarization

Linear

Material

Composite fiberglass material

Installation interface

1/4" threaded mounts

RF interface

BNC

Size

190*118*14mm

Weight

~95g (excluding cable)
