Audio Limited A10-RACK

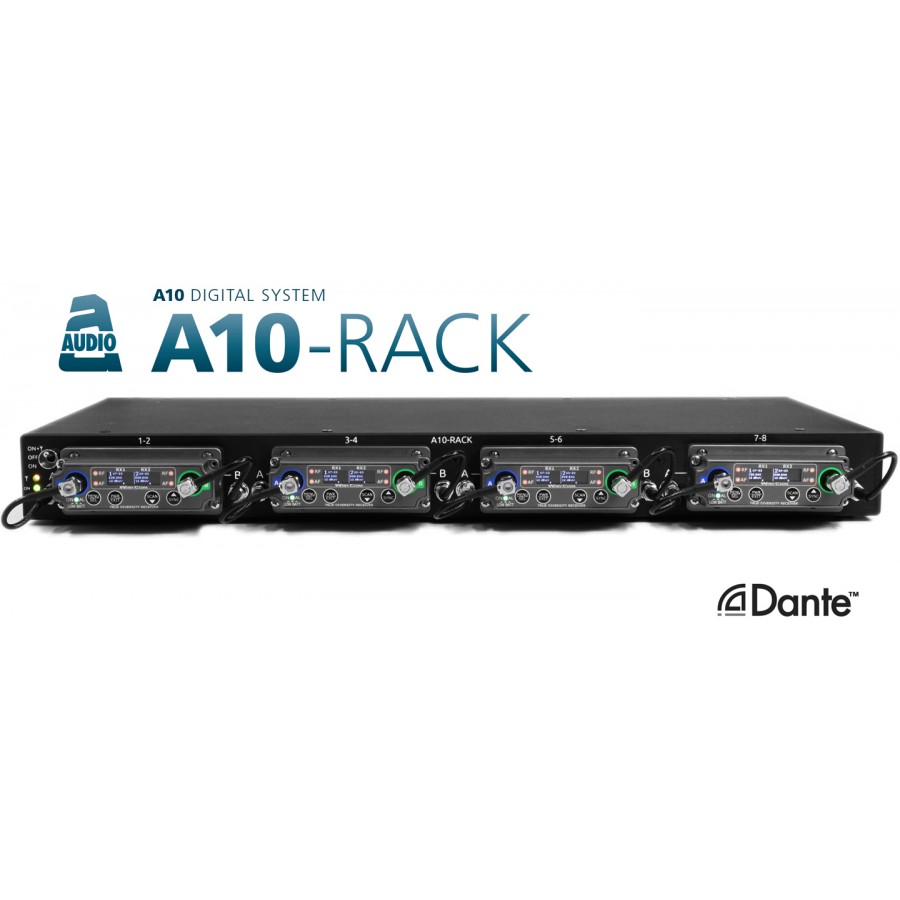

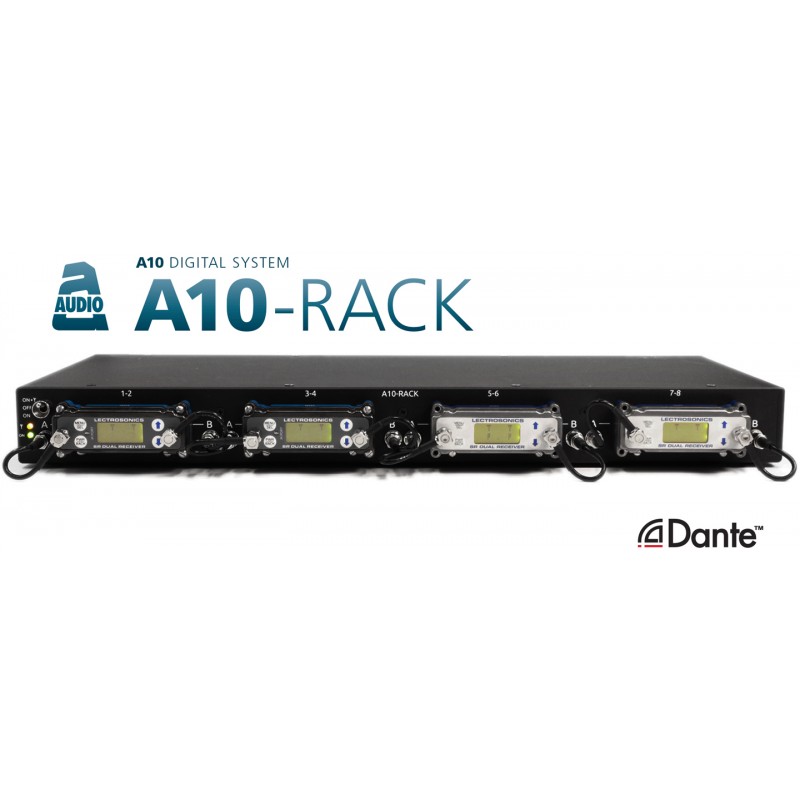

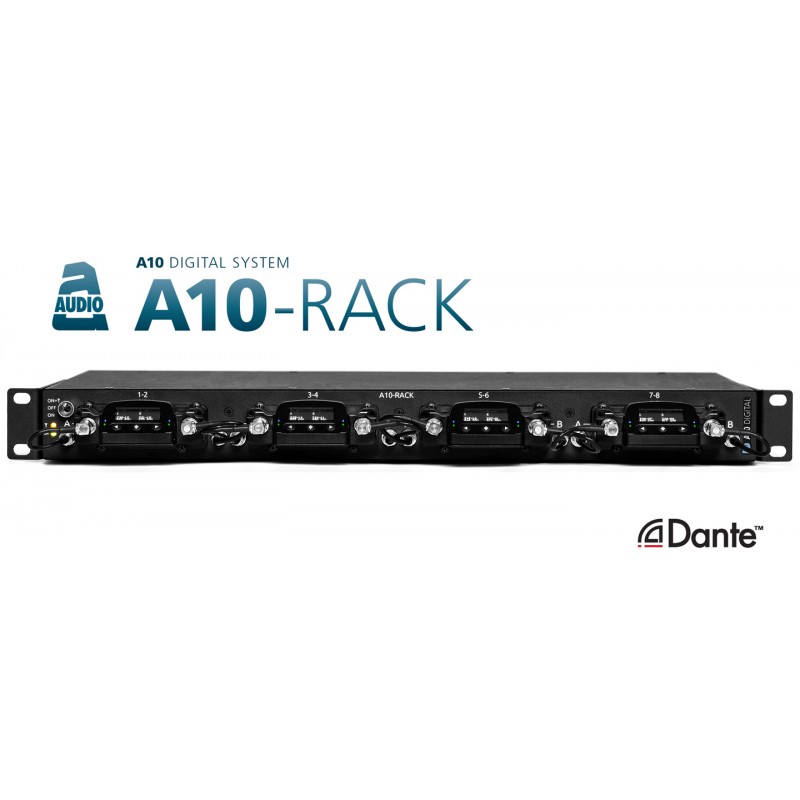

The A10-RACK offers convenient mounting, powering, RF, and audio connectivity for four uni- or SuperSlot wireless receivers in its 1 RU chassis. It is designed for dual-channel receivers from Audio Limited, including the A10-RX, plus slot receivers from Lectrosonics and Wisycom. The A10-RACK includes built-in antenna distribution with powering for active antennas. Up to eight channels of audio from single or dual-channel receivers appear on both its XLR outputs and over Dante™ audio-over-Ethernet.


  • accepts up to four, two-channel wireless receivers (receivers sold separately)
  • audio output on analogue/AES3 and Dante
  • built-in power distribution
  • built-in antenna distribution with selectable power for active antennas
  • powered from 4-pin XLR input (10-18 VDC)
  • USB port for firmware updates and serial acces
  • Compatible Wireless Receivers

    ManufacturerModelCompatible
    Audio LtdA10-RXcompatible
    Audio LtdEn2 CX2-Pcompatible
    LectrosonicsSRacompatible
    LectrosonicsSRbcompatible
    LectrosonicsSRccompatible
    WisycomMCR42compatible

    A10-RACK Specifications

    RF Frequency Range470-694 MHz
    Number of Receiversfour two-channel, diversity receivers
    Active Distribution Amplifier Bandwidth224 MHz, with powering for active antennas (12 V, 200 mA)
    Antenna Inputs2 x BNC 50 Ohms
    RF Outputs2 x BNC 50 Ohms
    Power10–18 Volts DC, 3 amps via 4-pin XLR male
    Audio Outputs8 x 3 pin XLR-M (analogue and/or AES3)
    Dante Output2 x RJ45 to provide Dante™ primary and secondary
    Output, Analogue+18 dBu maximum, balanced
    Output, DigitalAES3, transformer-balanced
    Audio Frequency Response20-20,000 Hz ±1 dB
    Service PortUSB type B
    Dimensions (H x W x D)442 mm x 210 mm x 45 mm (without rack ears), 1 RU
    Weight (without receivers)3.6 kg
