THE MODULAR TIMECODE SLATE AND DISPLAY WITH FULL ACN INTEGRATION

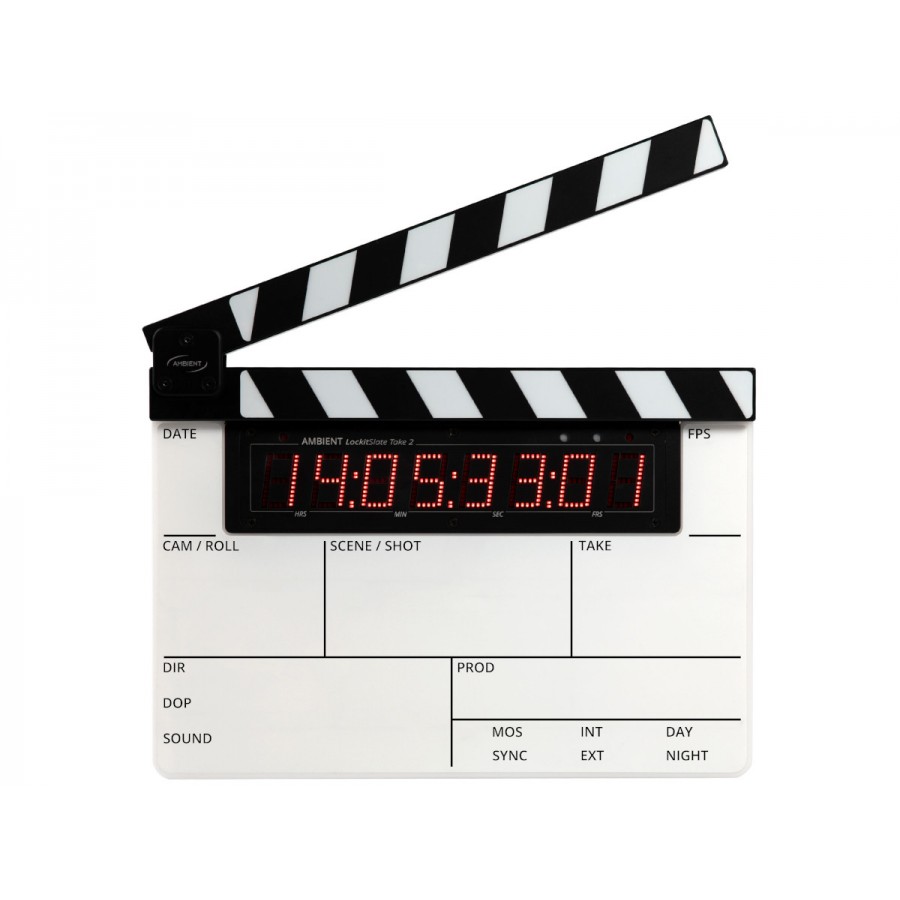

The LockitSlate Take 2 (ACN-LS2) is a highly accurate smart-slate system featuring a unique product design and functionality.

It is the successor to the popular LockitSlate and fully compatible. We kept the construction and dimensions so that accessories or custom made faceplates can seamlessly be used on the new product. Powering is over 4 AA cells, optimized for chargeable NiMH chemistry. This allows for a run time of over 24 hours with the slate open at default brightness. External powering is possible over USB-C. Improved resistance against humidity through lip sealing around LED display.

The same simple operation via 3 buttons as with the Lockit and NanoLockit.

New, mixed adaptive LED brightness mode: manually set the desired brightness, the display will dynamically adapt to changing light situations

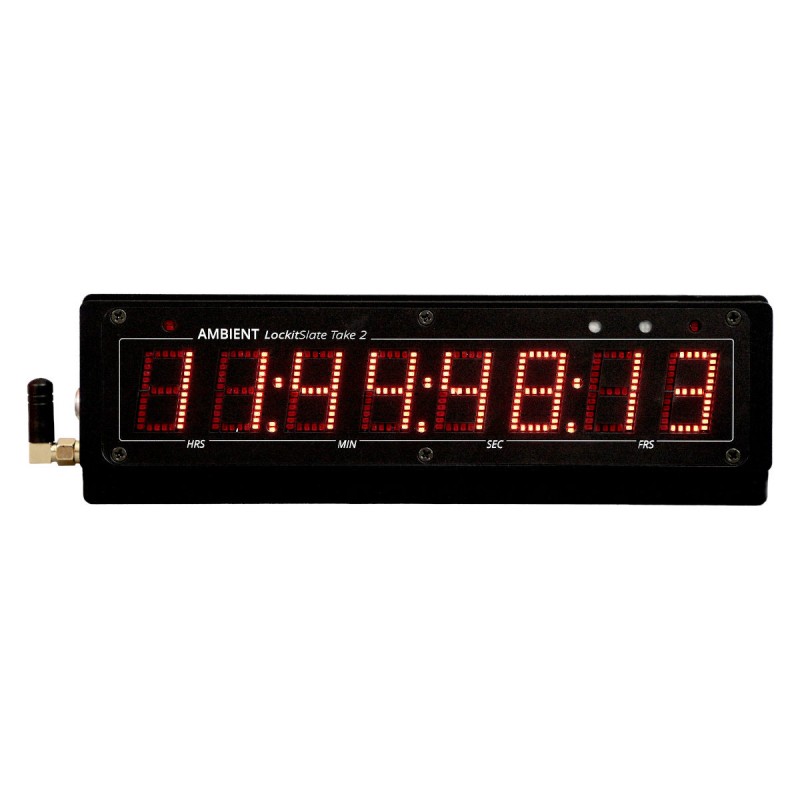

USE THE DISPLAY STANDALONE AS FULLY FUNCTIONAL TIMECODE INTERFACE.

With it’s all-new and revolutionary modular construction, the electronic section of the Lockit Slate can also serve as a fully functional, compact standalone display for documentary or desktop use. Housed in a machined, pearl-blasted and anodized aluminum body, it can easily withstand the roughest production conditions.

USE THE LOCKITSLATE AS MIDI TC DISPLAY AND INTERFACE

The LockitSlate offers a variable timecode offset to compensate for processing delays of digital cameras. Plugged in into a computer, the LockitSlate transforms into a highly accurate midi timecode interface with LTC / midi timecode conversion and of course big TC LED display. This way the ACN-LS2 opens up the possibility to sync multiple cameras with a Pro Tools workstation.

CUSTOMIZED, OR BLANCO SLATE BOARDS ARE AVAILABLE ON REQUEST.

CAD prints of the slate board are available to allow for personal constructions.

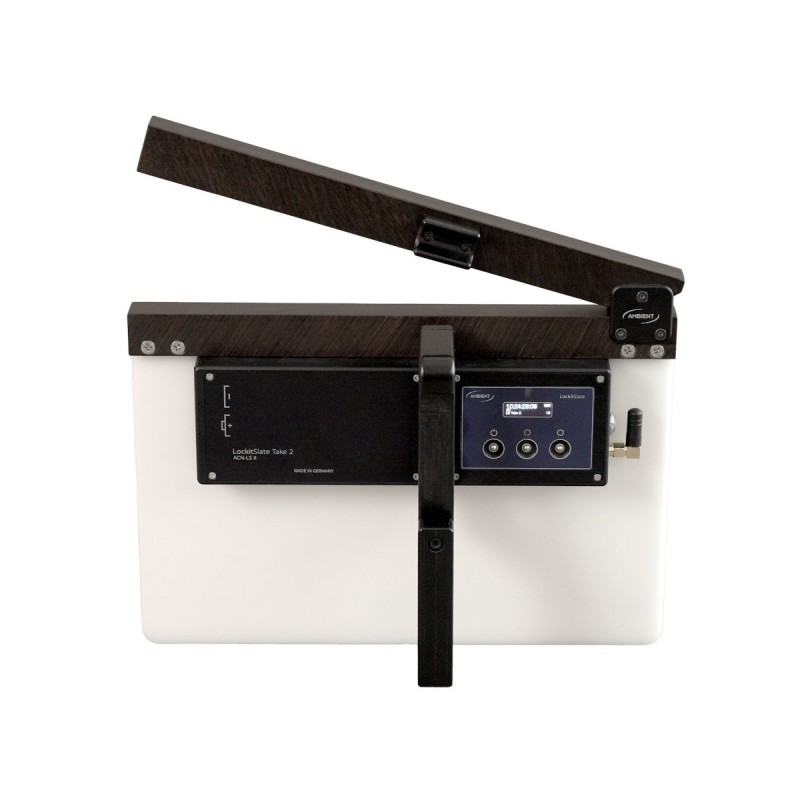

WOODEN CLAP STICKS AVAILABLE

The LockitSlate Take 2 can be ordered or retro-fitted with clap sticks handmade out of Oak Wood.

HANDLE WITH A SOLID STAND

Included in delivery is a handle with fold-out stand (LS-HG1) and 3/8" thread at the bottom.
