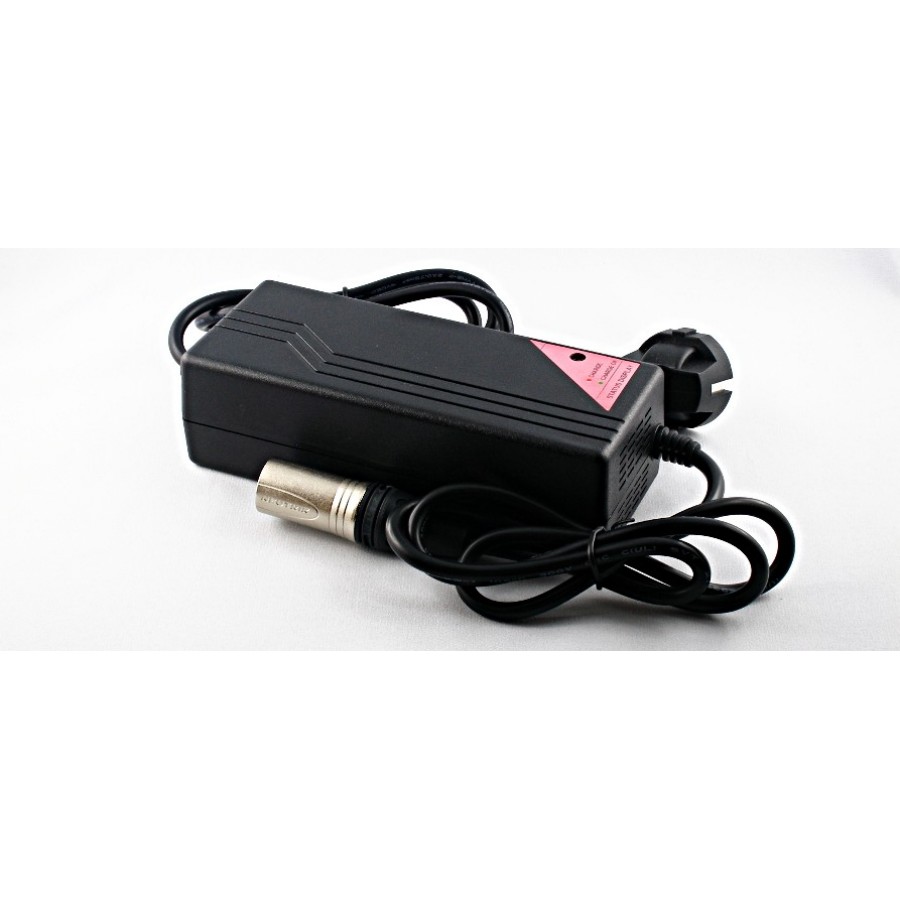

10A 12.8V LiFePo4 charger- SILENT

This Smart Charger is designed to charge 12.8V(4 Cells) LiFePO4 batteries with a capacity >= 20Ah. It features a three stages charging method ( Constant Current, Constant Voltage , Trickle charge mode) without overcharging the battery . An XLR4 male connector is fitted to mate directly with our LiFePo4 batteries. An internal resettable fuse is installed inside the charger : there is no need to change the fuse after en over-load current cut-off. This charging unit is actively cooled with a small fan that is integrated in the charger’s enclosure.

This charger is only compatible with our eSMART LiFe-576Wh batteries.

Specifications :

INPUT

AC input voltage 90 to 240 VAC Worldwide power support

Input frequency 50/60Hz

Input Current Max 3.0A

CHARGE

The Battery range is > 20Ah

Max. charging current: 10A

OUTPUT

14.6V 4.0A

XLR4M output connect

LED indicator

Red LED = Charging (0-99%)

Green LED = Fully charged (100%)

Weight: 460grams
