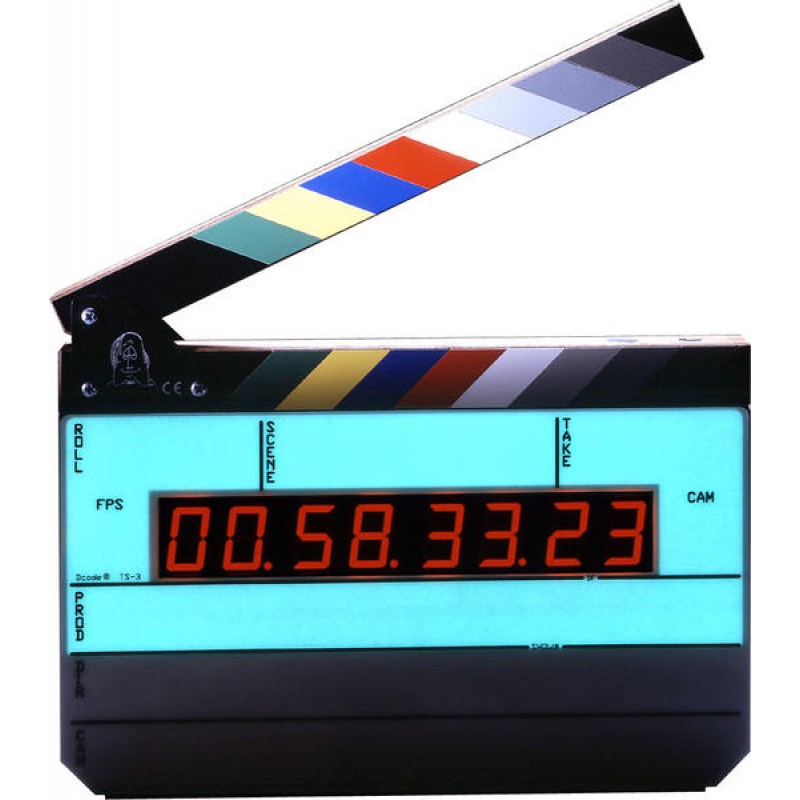

Denecke Dcode Time Code Slate w/ Backlight TS-3EL

The Denecke TS-3EL reads and displays SMPTE/EBU time code and has an internally mounted syncbox time code generator. It jams to all standard frame rates, including 23.976 fps and user bits jam automatically when the time is set.

The high stability TCXO (Temperature Compensated Crystal Oscillator) ensures low drift and is standard on the TS-3.

The EL backlit display is particularly useful during night shoots and on dimly lit stages.


Auto set frame rate

Flat back for camera logs

Blinking LED jam indicator.

CXO Crystal

Battery voltage readout.

Sync error display

Sliding access door to controls and quick load battery pack

EL Backlight Display

MODE A: Enable / Disable Modes

MODE B: Set value of selected modes

Size8.25” x 11” x 1.3” (21 cm x 28 cm x 3.3 cm)
Weight2.35 lbs. (1.05 kg); 2.7 lbs. with batteries (1.25 kg)
TCXO±1ppm @ -30° to +75° C
Input-15 db at 4.7k ¼” phone jack.
Power5.7v to 16v DC
Battery Pack6 alkaline “AA” batteries.
