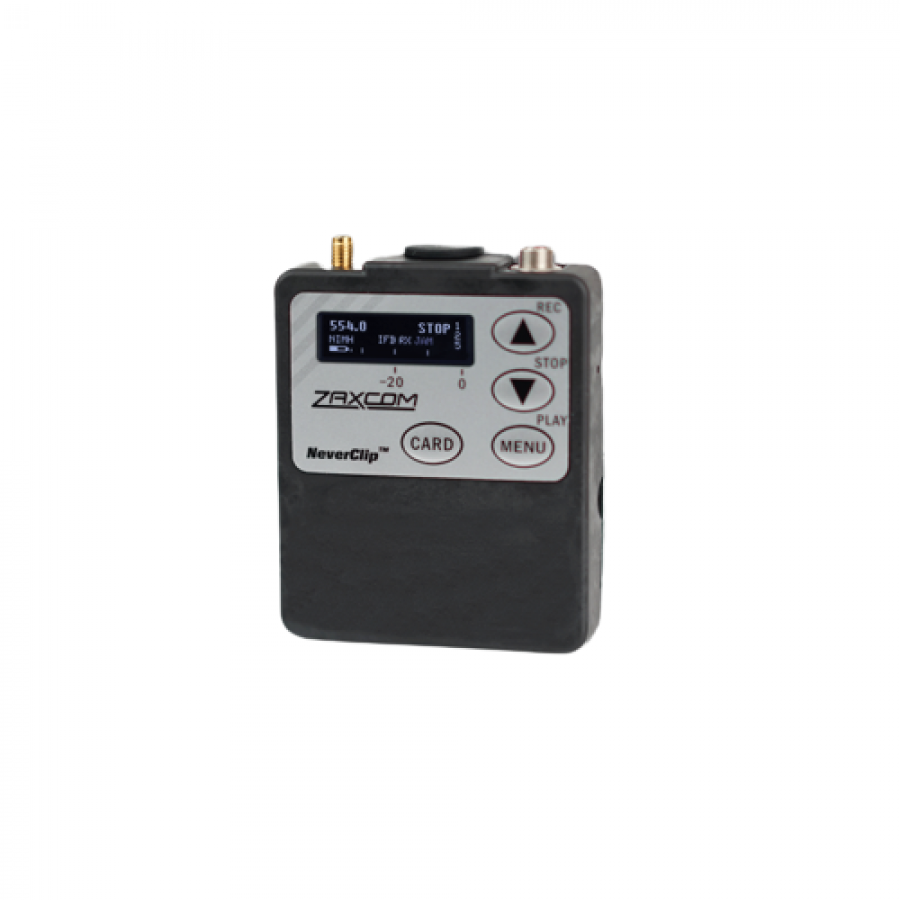

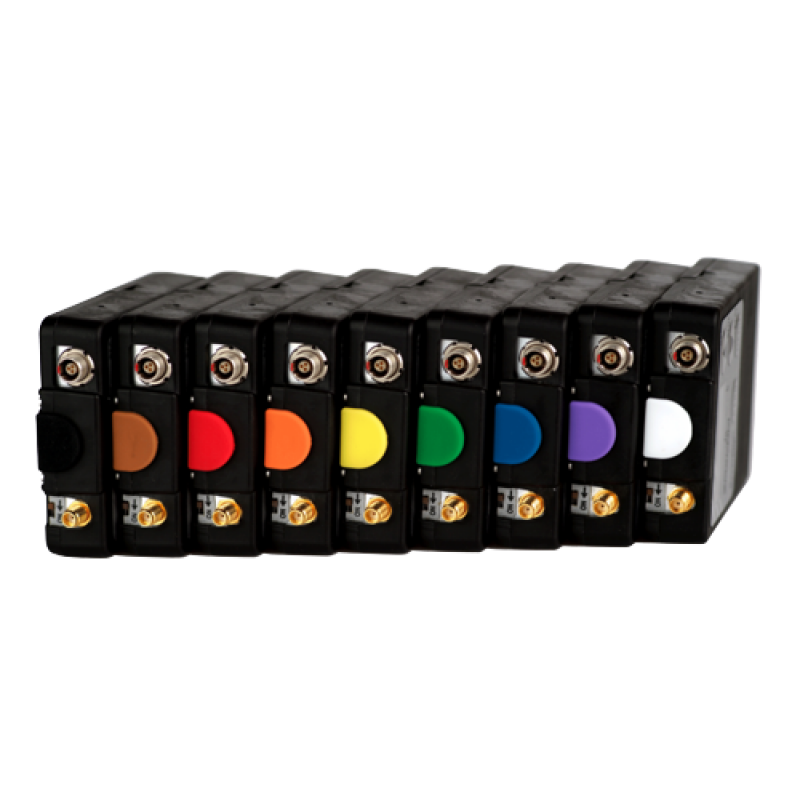

TRANSMITTER

RF Modulation: Proprietary Digital Method

TRXLA3.5 RF Frequency Range: 512 - 614 MHz

TRXLA3.6 RF Frequency Range: 596 - 698 MHz

RF Frequency Step: 100 KHz

RF Bandwidth in ZHD Mode: 50 KHz

RF Bandwidth in XR Mode: 200 KHz

Channel Separation in ZHD Mode: as close as 100 KHz (receiver dependent)

Channel Separation in XR Mode: 400 KHz

Antenna Connector: 50 Ω SSMA Female

Emission Designator: 180 KV2E, 100 KV2E, 50 KV2E

FCC Part: 74.861

TRANSMITTER AUDIO

Dynamic Range: 126 dB (Stereo model 106 dB)

Distortion: 0.002%

Frequency Response: Mode 0: 20 Hz to 16 kHz / T & M Mode 0.2 Hz to 16 kHz

High Pass Filter: Off or 30 to 220 Hz, Steps: 10 (6 dB Per Octave)

Mic Power: 3.3 VDC

Mic Connector: 3-Pin Micro LEMO

Input Range: -60 to -30 dBu

Mic Impedance: 6.8 k Ω

ADC Bit-Depth: 24 Bits

ADC Sampling-Rate: 48 kHz

TIMECODE READER / GENERATOR

Clock Accuracy: 1.54 PPM (1 Frame Out in 6 Hours)

Timecode Type: SMPTE

Timecode Frame-Rates: 23.98, 24, 25, 29.97NDF, 29.97DF, 30NDF, 30DF

INTERNAL RECORDING

Media: MicroSD Card (Flash Memory)

File Format: .ZAX

Recording Time:

2.4 GHZ ZAXNET RECEIVER

RF Frequency Range: 2.403 to 2.475 GHz

RF Modulation: Digital Spread Spectrum

RF Frequency Step: 0.001 GHz (1 MHz)

RF Bandwidth: 1 MHz

Channel Separation: 2 MHz

Sensitivity: -96 dBm

PHYSICAL

Weight: 3.2 oz without Battery

Dimensions (H x W x D): 3.0″ x 2.4″ x .65″

Display: Graphic OLED

POWER

Power Output: 25 / 50 / 100 mW – Software Selectable

Battery Life: Up to 7 Hours with 2 Lithium AA at 100mW
