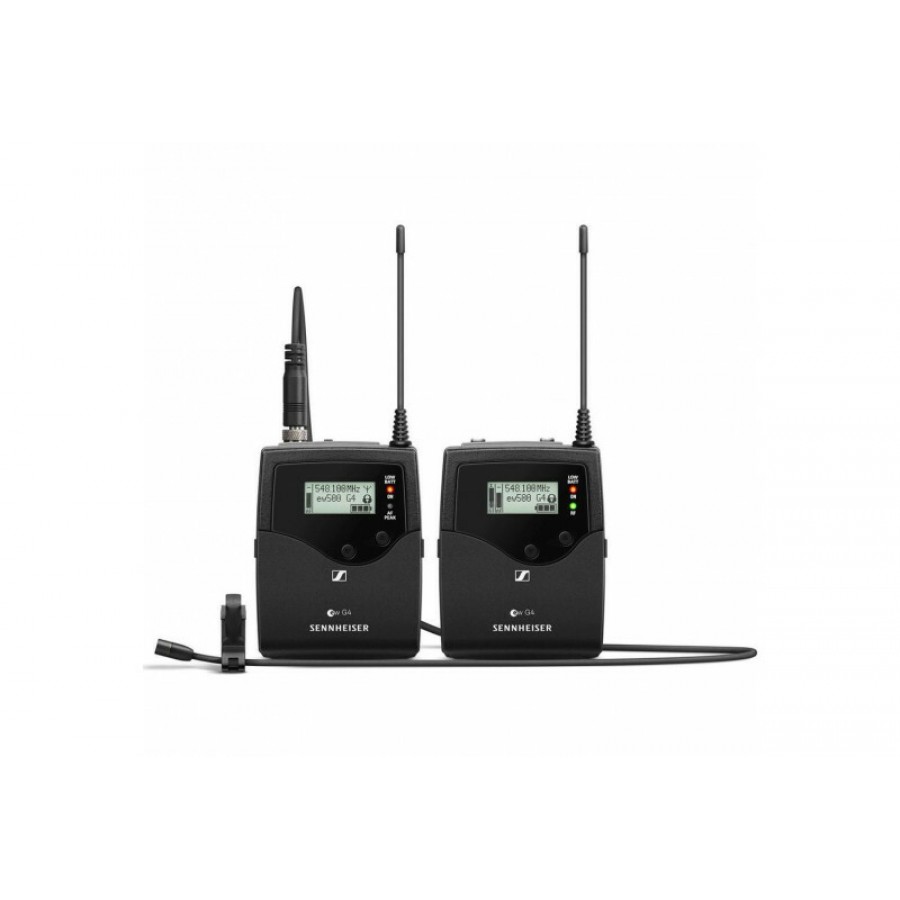

Sennheiser EW 512P G4-MKE2 AW+
The perfect solution for film-makers on large sets, operating up to 32 channels in parallel. The amazing bandwidth of up to 88 MHz and the increased RF output power ensure highest safety, no matter the conditions.
Highly versatile solution for professional film sound: Rugged all-in-one wireless system for professional interviews and recording
Description
Professional sound and excellent construction quality
Easy to use and fast setup time
Easy and flexible wireless synchronisation between transmitter and receiver via infrared
Up to 88 MHz bandwidth, up to 32 channels
Range: up to 100 meters / 330 feet
Increased RF output power (10/30/50 mW)
Up to 8 hours of operation time
What's in the Box
EK 500 G4 camera receiver

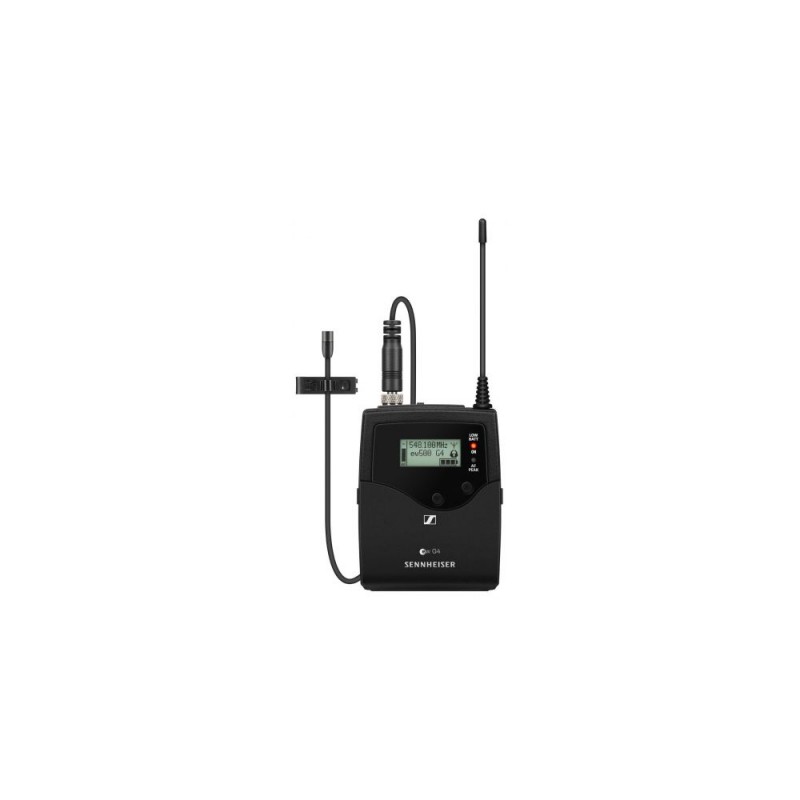

SK 500 G4 bodypack transmitter
MKE 2 clip-on microphone
4 AA batteries
CL 1 3.5 mm jack cable
CL 500 XLR to 3.5 mm jack adapter cable
CA 2 camera adapter
fur windscreen for MKE 2
quick guide
safety guide
manufacturer declaration sheet
EK500 G4
Frequency range
Aw+: 470 - 558 MHzDimensions
Approx. 82 x 64 x 24 mmCompander
Sennheiser HDXTHD, total harmonic distortion
≤ 0.9 %Weight
(incl. batteries) approx. 130 gAudio output
3.5 mm jack socket: +17 dBu (mono, balanced)Signal-to-noise ratio
Line: ≥ 110 dBA, Phones: approx. 90 dBASwitching bandwidth
up to 88 MHzPeak deviation
±48 kHzNominal deviation
±24 kHzOperating time
Typically 8 hModulation
Wideband FMPower supply
2 AA batteries, 1.5 V or BA 2015 accupackCurrent consumption
at nominal voltage: typ. 140 mA
with receiver switched off: ≤ 25 µAAdjacent channel rejection
Typically ≥ 65 dBIntermodulation attenuation
Typically ≥ 65 dBPowering
3 V battery / 2.4 V rechargeable batteryReceiving frequency
Max. 3520 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channelsRF sensitivity
< 1.6 μV for 52 dBA eff S/NSquelch
low: 5 dBµV, middle: 15 dBµV, high: 25 dBμVTemperature Range
-10 °C to +55 °CReceiver Principle
Adaptive diversityBlocking
≥ 70 dB
SK 500 G4
Dimensions
Approx. 82 x 64 x 24 mmCompander
Sennheiser HDXTHD, total harmonic distortion
≤ 0.9 %Weight
(incl. batteries) approx. 160 gSignal-to-noise ratio
≥ 115 dBARF output power
switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mWSwitching bandwidth
up to 88 MHzPeak deviation
±48 kHzNominal deviation
±24 kHzOperating time
Typically 8 hModulation
Wideband FMPower supply
2 AA batteries, 1.5 V or BA 2015 accupackCurrent consumption
