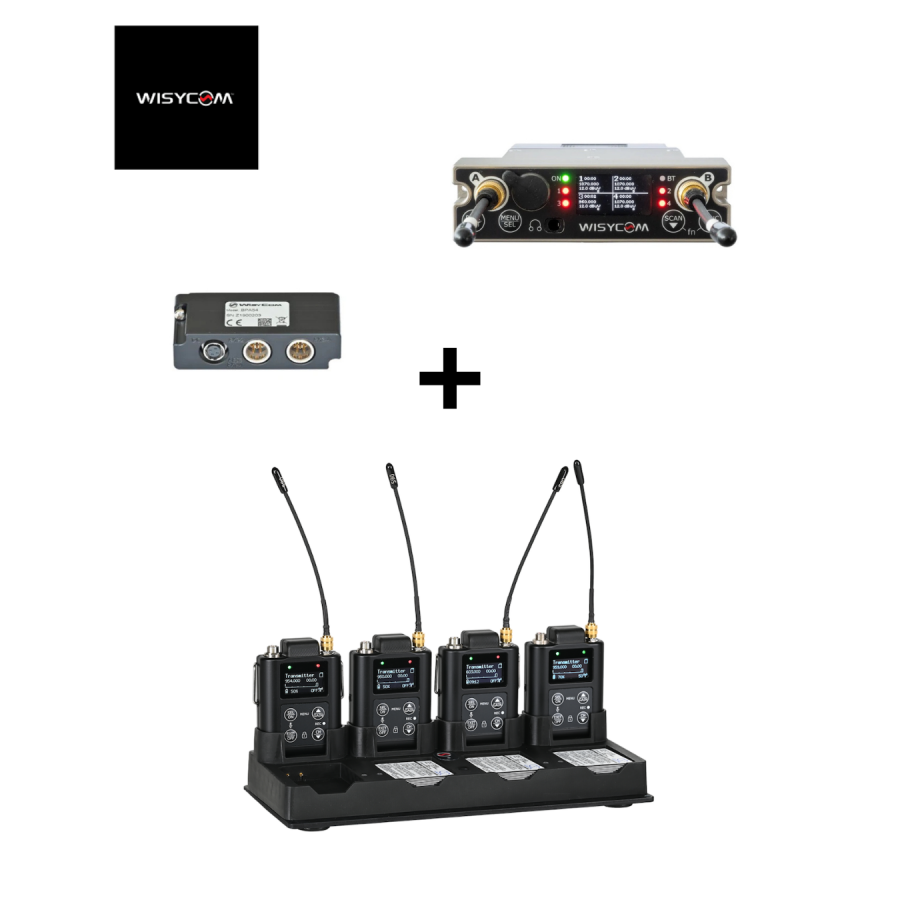

MCR54 is a camera quadruple true diversity wireless microphone receiver system in a modular stand alone or slot in configuration. It’s compatible with most camera’s slots and “multi-slot” mixer accessories.

MAIN FEATURES:

• Four channels True Diversity receiver (8 Receiver boards!)
• Exceptional compactness and high robustness
• DSP Analogue & Digital Audio Output (AES3)
• Up to 790 MHz bandwidth in 470/1260 MHz range
• Next Gen Multiband front-end filtering:

High Q electronically tunable filter in 470-800 MHz
1st narrowband filter
2nd narrowband filter

• Wideband and Narrowband DSP-FM operation (SW selectable):

Narrowband allows more 50% band efficiency
Narrowband allows about 3dB extra sensitivity and noise immunity

• Extreme low noise VCO with ultrafast spectrum scan for optimal quick & easy setup
• High contrast OLED display
• Automatic scan & transmitter programming through infrared and Bluetooth 5 long range
• DSP based for extreme flexibility and multi-companding operations
• Monitor & control through USB C or Bluetooth 5 (long range) on Wisycom Manager 2.0 (computer SW)

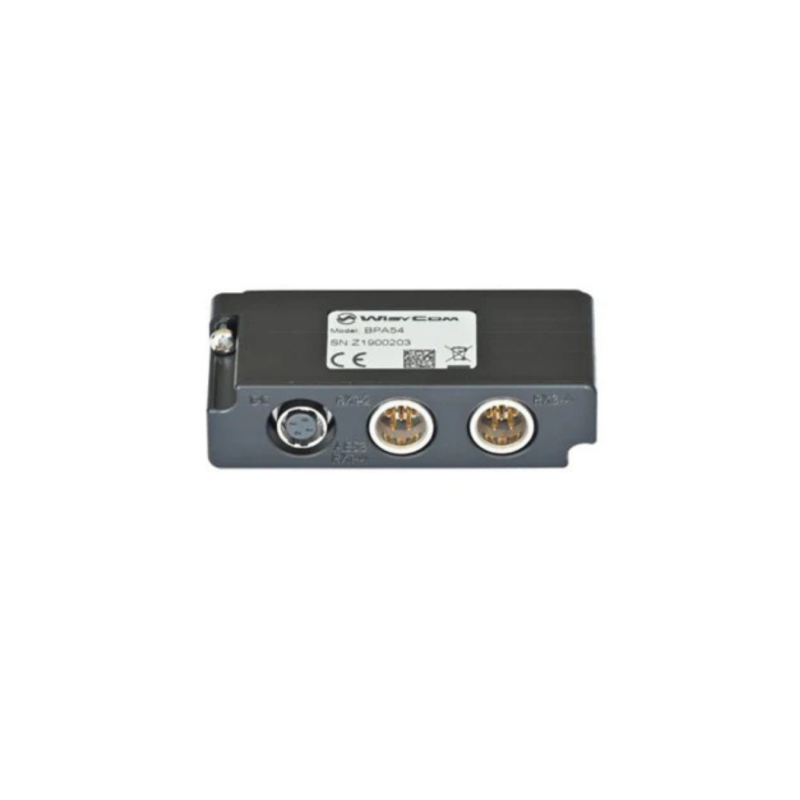

• Rear antenna connectors and micro audio and power adapter

MTP61 is a miniature pocket transmitter ideal for location sound, theater and all situations where the smallest size is mandatory

FEATURES

• The multi-band MTP61 currently has the widest tuning range of any wireless transmitter on the market (470 to 1260 MHz)
• Monitor & control with Bluetooth via Wisycom Manager software or mobile device apps to adjust parameters in real time
• Advanced linear technology eliminates intermodulation distortion for more robust signal, extended range, and the ability to operate multiple transmitters in close proximity to each other without needing an intermod frequency plan
• Embedded recorder to record directly on the internal 64 GB micro SD card and integrated Linear Time Code decoding
• DSP based signal processing allows easy switching between wide and narrow band operation
• ENS compander for a totally clear sound
• Powering with Lithium-ion battery Model CS-BCE10 (Part No. CGA-S008E 3.7V, 1050 mAh, 3.9Wh Cameron Sino)
• Bluetooth interface and mobile app allows full control from mobile or tablet
• Integrated low-pass audio filter eliminates ultrasonic interference from devices such as focus pullers
• Front panel buttons to quickly enter menu thanks to its multiple shortcut combinations

TECHNICAL DATA:

• Frequency range: from 470 to 1260 Mhz, depends on the country (see Configurations)
• Switchable channels: 2400 managed in 40 groups ofr 60 frequencies completely user  programmable
• Switching-window: Up to 362 MHz, depending on band (see Configurations)
• Frequencies: Quartz PLL  frequency synthesizer circuit (5 kHz step)
• Frequency error: ±2.5 ppm, in the rated temperature range
• RF Power: 10mW/ L10 W/ 20 mW/ L20 mW/ 50 mW/ 100 mW*

*on specific configurations

• Antenna connector: SSMA
• Modulation: Wideband and Narrow-band with DSP based digital signal processing
• Nominal deviation: ±40 kHz Wideband / ±25 kHz Narrowband
• Peak deviation: ±56 kHz Wideband / ±35 kHz Narrowband
• Spurious emissions: < 2 nW
• Telemetry feature: TX transmits also a digitally modulated sub-carrier, suitable for:

tone-squelch operating

remote battery monitoring, compander and modulation control

optional PTT (push to talk) operation

• Noise Reduction system: ENS – Wisycom ultra-high permorfmance compander
• AF bandwidth:

Audio frequency response (dBa)

in NarrowBand mode (NB): 45 Hz ÷ 17 KHz (3dB)

in WideBand mode (WB): 45 Hz ÷ 20 KHz (3dB)

• Distortion

< 0.3 %   (0.15 % typ.)

• SND/D ratio (Analogue)

typ. 115 dB (A)rms with 40 kHz deviation;   typ. 121 dB (A)rms with 56 kHz deviation   Wideband

typ. 115 dB (A)rms with 25 kHz deviation;  typ. 121 dB (A)rms with 35 kHz deviation   Narrowband

• Audio input connector: LEMO 3pin
• Audio input level: from -40 dBu (12mV RMS) to 10 dBu (2.5 V RMS) adjustable in 1 dB steps. input dynamic extension with an integrated limiter
• Max input level : +10 dBu (2.5 V) at clipping
• Storage media: internal 64 GB micro SD memory card (industrial grade heavy duty)
• Time code: Linear Timecode decoding
• Bit rate: 24 bit / 32 bit
• Sampling rate: 48 kHz
• Managing interface: Bluetooth 5.2 low energy, proprietary waterproof magnetic connector 5 pin (USB HS + power + LTC)
• LED: 3 RGB LEDs (red, green and blue) for audio, RF, battery status and battery charger
• Battery level indication: percentage or minute/second
• PTT function: Pin 3 of AF connector can be controlled via an externall PTT button
• Display: High contrast OLED white display (128 x 64 pixels)
• Power supply: Cameron Sino Lithium-ion battery Model CS-BCE10 Part No. CGA-S008E (3.7V, 1050 mAh)
• Battery life: approx. 8 hours @ 10mW
• Temperature range: -10 ÷ +55 °C
• Dimensions: 66,8mm x 47mm x 17mm (HxWxD) without clip
• Weight: Approx. 72 g. without battery, 94 g. with battery

The Wisycom LBC61 is a battery charger for Wisycom MTP61 and Wisycom lithium-lion battery

Charges 4 MTP61 transmitters + 4 LBP61 lithium batteries simultaneously.

Features:

• Ethernet 10/100 RJ45 for MTP61 management
• USBC 3.2 Gen 1 for download SD card recording on PC
• USBC 3.2 Gen 1 for battery charger cascade
• 2 x jack 3.5 mm for LTC Timecode sync and cascade
• DC power connector (Type A 5.5/2.1mm with screw lock)

4x DPA to LEMO3 includes.
